SVG Trees

SVG Trees

Top  Previous  Next

The option display hierarchical trees of both the Source and Target files.  To activate this option, select "View -> SVG Trees on the menu bar.

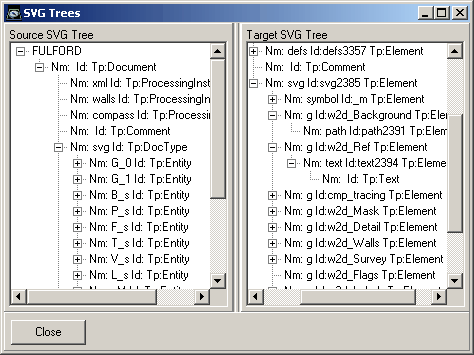

SVGTrees



The dialog displays side-by-side trees of the both Source and the Target SVG Tree. It displays the SVG tag, id, node type for each SVG element in the each SVG File. It is mostly useful for debugging purposes. For more information, refer to any good online SVG reference.
