Coloring By Section

Top  Previous  Next

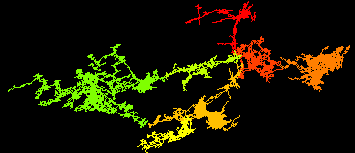

Compass surveys can be divided up into Sections that help you organize your surveys and caves. To help you visualize these sections, the Viewer gives you the option of displaying each section in a different color.



Activating. You can turn on this option by selecting "Display|Color by Section" from the menu bar. Because of the limited number of colors Colorspure, the program has to recycle colors. As a result, some sections may have the same color.



Options. The Viewer also allows you to control the color and range of depth for each color band. This option is a part of the Complex Plotting options. You also have the option of using 12 or 24 colors depending on your video display.
