Lines

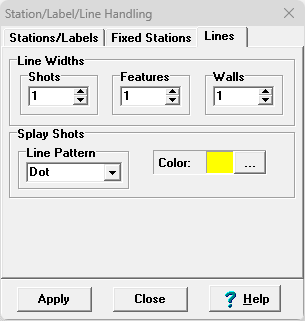

This page controls the way various lines are drawn.

Line Widths. This section controls the line width of various features:

Shot Lines. This option set the width of the lines that are used to represent the survey shots.

Feature Lines. This option sets the line width for the Legend Boxes, the Depth Bars, Shadow Box lines and Quad Lines.

Passage Lines. This option sets the line width for all Passage Wall displays.

Splay Shots. Options in this section controls the display of "Splay Shots." Splay Shots are shots to a passage walls, which help define the shape of the passage, which is useful for drawing maps. Here is a description of the Splay options.

Line Pattern. This option controls the pattern of dots and dashes used to draw the splay-shot lines. Here is a chart showing the available patterns.

Color. This option sets the color of the splay-shot lines.

All these options can be saved so they become the default value when the program starts. You also have control over the color of the shot lines.
