Included Surveys Page

Top  Previous  Next

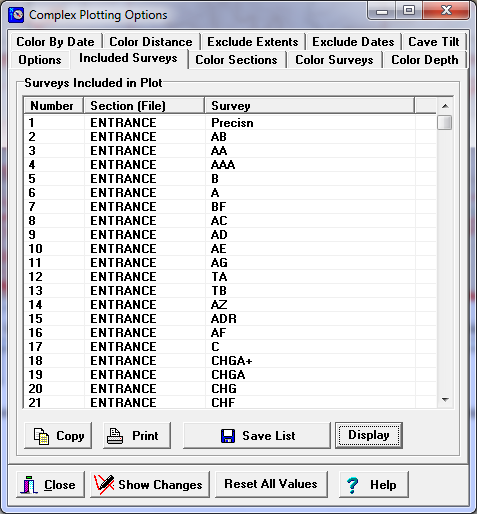

When you plot a cave using the Complex Plotting tools, some surveys will be plotted and some will not be plotted. It is sometimes useful to know exactly which surveys appear in the display. The Included Surveys Page allows you to do this.



Displaying Surveys. After you have selected parts of the cave for plotting using the various Complex options, you can display a list of these surveys by pressing the “Display” button. The section name and filename of each survey will be displayed in the list.



Exporting The Data. The information in the list can be printed, saved to a file or copied to the clipboard by pressing the appropriate button at the bottom of the page. Data saved to a file or copied to the clipboard is in “tab delimited” format, which means that it can be imported easily in spreads or word processors.
