Quad Size Page

Top  Previous  Next

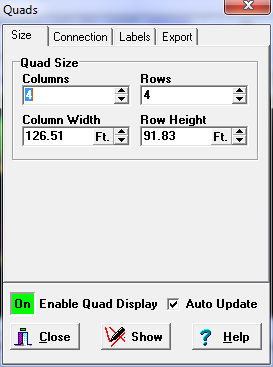

The quad grid consists of a series of rows and columns that divide the cave into separate cells. Each cell represents a different quad map. This page allows you to control the number and size of each cell. Here are detailed descriptions of each option:



1. Columns. This option allows you to control the number of columns in the grid. In other words, this option controls the number of cells from left to right (west to east.)



2. Rows. This option allows you to control the number of rows in the grid. In other words, this option controls the number of rectangles from top to bottom (north to south.)



3. Column Width. This option allows you to control the width of each cell in the grid. The value can be in feet or meters depending upon the current settings.



4. Row Height. This option allows you to control the height of each cell in the grid. Again, this value can be either feet or meters.
