Morph Tool

Morph Tool

Top  Previous  Next

The Morph Tools is used to warp parts of the image so the positions of survey stations in the sketch-map match those in cave survey. The tools works using the Beier-Neeley algorithm, which is the standard method for morphing images (http://www.hammerhead.com/thad/morph.html).



To access the Morph tool, you simply push the the "Morph Button" on the Main Window. The image you are working on will be transferred to the Morph Tool.

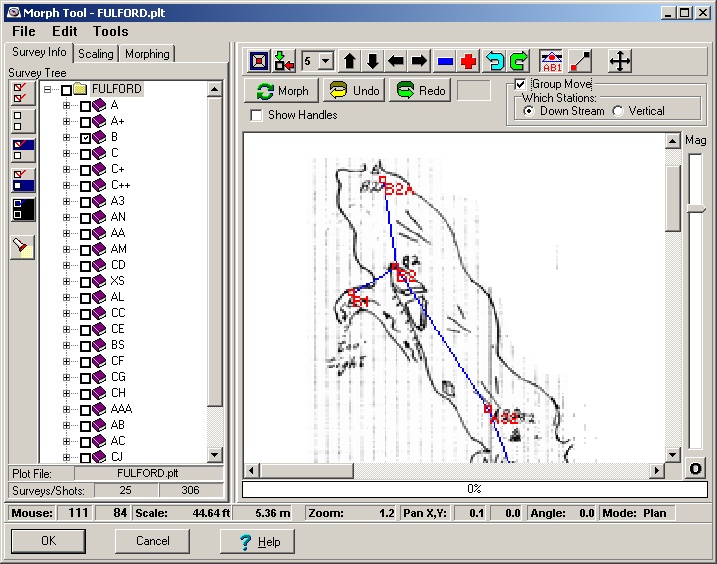

MorphWindow


The Morph Tool is divided in several sections. Here is a detailed description of each section:





For detailed, step-by-step instructions on using the Morph Tool, please refer to the Morphing Tutorial.
